- Description
GALVANIZED/BLACK ANNEALED/PVC COATED IRON WIRE; HARD-DRAWN WIRE; SPOOL WIRE
Galvanized iron wire
Material: low carbon iron wire Q195 Q235
Kinds: Hot dip Galvanized iron wire,Electroplate iron wire, PVC coated galvanized iron wire.
Uses: used in communication equipment, weave wire mesh ,craftwork,etc.
Black annealed iron wire
Materials: low carbon rion wire, Q195 Q235
Uses: used in weaving mesh, binding wire, construcion, industry and resident.
PVC coated iron wire
With choice galvanized iron wire as material, this company offers good quality PVC Wire for worldwide customers. PVC Wire offers excellent corrosion resistance and anti-aging property and longer service life compared with common galvanized wire. Different colors available for customers choice is another advantage of PVC Wire.
Hard-drawn Wire
Material: 1).low,medium or high carbon steel 2).Thick pure zinc coating firmly adhered to the wire
Processing: Low carbon steel wire Rod →First drawing → Second drawing (according wire diameter)→ Make Coil.
Application: Widely used in Construction, handcraft,weaving wire mesh, products packing and daily use.
Spool Wire
Material:
| Wire Diamater: Hard Wire: Φ 0.20MM-Φ 3.00MM Soft Wire: Φ 0.08MM-Φ 2.00MM Variety: Soft Wire, Hard Wire, Coil Wire and Spool Wire. |
| Features: A. Excellent straightness B. Uniform and beautiful surface condition C. Excellent coil-forming ability D. High elasticity and high fatigue resistance E. Strong corrosion resistance against exposure to the toughest atmosphere F. Strong acid resistance & alkali resistance | Process: Steel rod coil -- Wire Drawing -- Annealing -- Rust Removing -- Acid Washing -- Zinc Plating -- Wire Coiling. |
SPECIFICATION:
Galvanized wire, steel wire, annealed wire,hard-drawn wire | |||
| wire gauge size | SWG(mm) | BWG(mm) | metric(mm) |
| 8 | 4.06 | 4.19 | 4.00 |
| 9 | 3.66 | 3.76 | - |
| 10 | 3.25 | 3.40 | 3.50 |
| 11 | 2.95 | 3.05 | 3.00 |
| 12 | 2.64 | 2.77 | 2.80 |
| 13 | 2.34 | 2.41 | 2.50 |
| 14 | 2.03 | 2.11 | - |
| 15 | 1.83 | 1.83 | 1.80 |
| 16 | 1.63 | 1.65 | 1.65 |
| 17 | 1.42 | 1.47 | 1.40 |
| 18 | 1.22 | 1.25 | 1.20 |
| 19 | 1.02 | 1.07 | 1.00 |
| 20 | 0.91 | 0.89 | 0.90 |
| 21 | 0.81 | 0.813 | 0.80 |
| 22 | 0.71 | 0.711 | 0.70 |
| PVC Wire | ||
| Wire Dia. | Opening | |
| inch | mm | |
| 2.2mm/2.6mm | 4" x 4" | 101.6mm x 101.6mm |
| 2.2mm/2.6mm | 4" x 3" | 101.6mm x 50.8mm |
| 2.0mm/2.5mm | 4" X 2" | 101.6mm x 50.8mm |
| 1.9mm/2.4mm | 3" X 2" | 75mm x 50.8mm |
| 1.9mm/2.4mm | 2" X 2" | 50.8mm x 50.8mm |
| 1.9mm/2.4mm | 2" X 1" | 50.8mm x 25.4mm |
| 1.6mm/2.1mm | 3" X 2" | 75mm x 50.8mm |
| 0.8mm/1.1mm | 1/2" X 1/2" | 12.7mm x 12.7mm |
| - | 3/4" X 3/4" | 19mm x 19mm |
0.6mm/0.9mm | 1/4" x 1/4" | 6.35mm x 6.35mm |
Pictures
 |  |

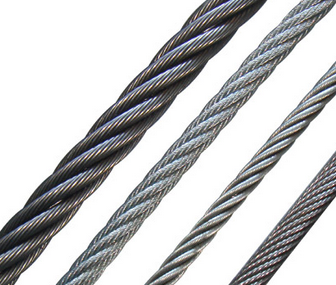

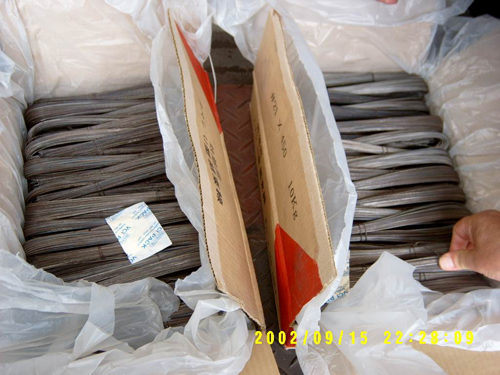

| Twist wire | Black annealed iron wire |
 |  |

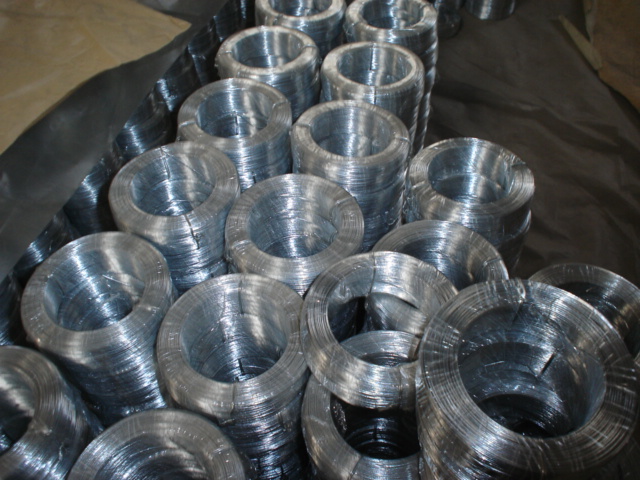

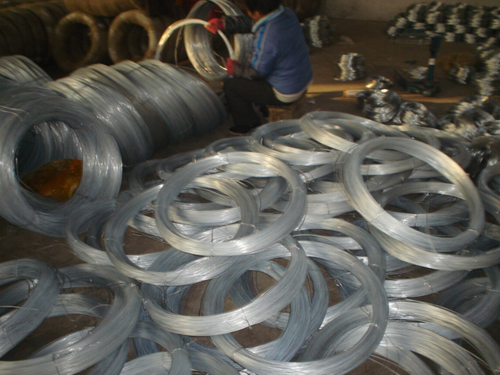

| iron wire | iron wire |
 |  |

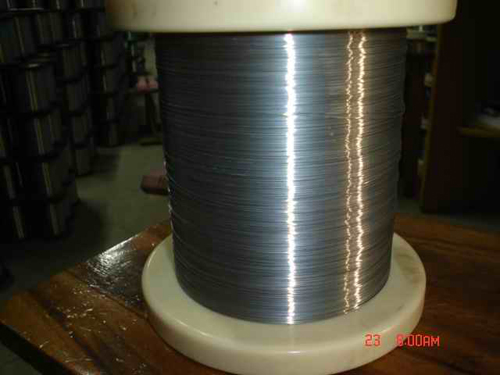

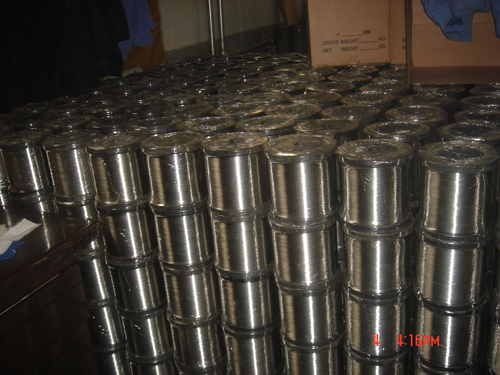

| Spool Wire | Spool Wire |
 | |
| PVC coated iron wire |
Packing
Packing：

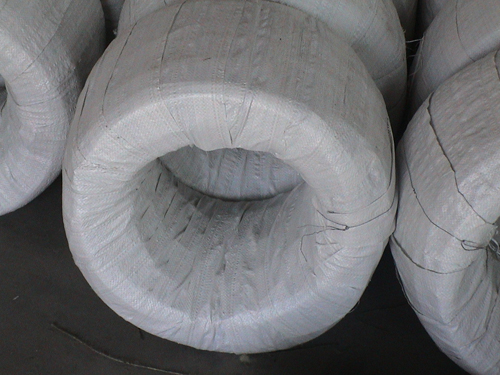

A: plastic bags inside and then woven bags outside

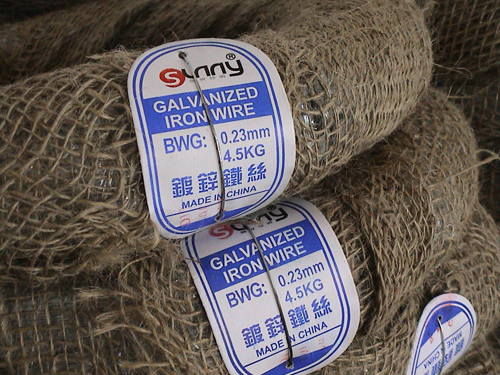

B: plastic bags inner side and then wrapped with hessian cloth
C: in plsctic or metal spools and then wrapped with water proof paper
D: pallets are available
 |  |
 |  |
