- Description

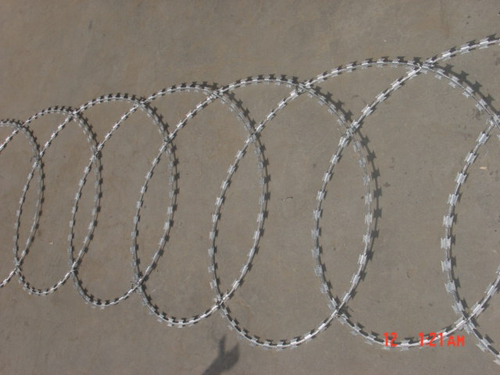

Razor barbed wire is also name concertina coils or razor type barbed wire. It is a new type of guard fence.
Application: Razor barbed wire is widely used in apartment house, government, prison, fronter defense, military fields and other sites requiring security.
Classification: Razor wire can be classified into concertina coils, straght type razor wire, crossed type and flat type according to the installation models.
 |  |
Specification
Reference | Blade Style | Thickness （mm） | Wire dia（mm） | Batb length（mm） | Barb width（mm） | Barb spacing（mm） |
| BTO-10 |  | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-15 |  | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
| BTO-22 |  | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 |  | 0.5±0.05 | 2.5±0.1 | 28 | 15 | 45±1 |
| BTO-30 |  | 0.5±0.05 | 2.5±0.1 | 30 | 18 | 40±1 |
| CBT-60 |  | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 |  | 0.6±0.05 | 2.5±0.1 | 65±2 | 32±1 | 100±2 |
